Specifications
Manufacturer: Alogic
Manufacturer Part Number: C6-0.5-WHITE
Manufacturer Website Address: http://www.alogic.co
Brand Name: Alogic

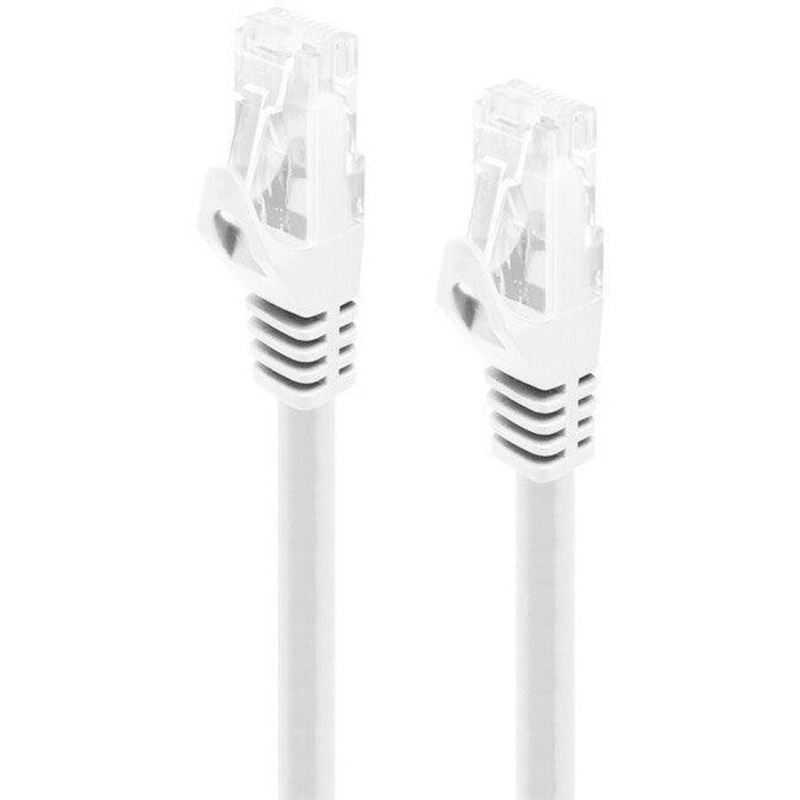

Product Name: White CAT6 Network Cable – 0.5m
Marketing Information:

Connect Your Ethernet Devices

ALOGIC Cat6 snagless patch cables are ideal to handle ultra-high speed and multi-gigabit protocols to transfer large volumes of voice, data, video and communications signals. ALOGIC CAT6 cables can help to improve the networks speeds by reducing impedance loss and network return loss in your network by as much as 4 %. The cables consist of 4 pairs of 24 AWG insulated copper conductors separated by a cross to maintain a uniform distance between them which leads to improved cross talk performance, low insertion loss and higher data rates. Gold plated connectors ensure crystal clear transmission and the custom designed snagless boot protects the cable from any damage during installation.

• All ALOGIC CAT6 cables are A-Tick compliant with ACMA requirements.
• Supports 10Base-T, 100Base-T, and 1000Base-T Network.
• Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.
• Available in 10 colours to easily colour-code your network installation.
• Meets and exceeds all Cat6 TIA/EIA-568-B-2.1, draft 9 standards
• 50-micron gold-plated connectors to ensure clear transmissions.
• Snagless moulded connectors to protect the RJ45 retaining clips from damage during installation.
• Warranty: Lifetime

Product Type: Network Cable
Technical Information
Cable Type: Category 6
Cable Characteristic: Patch Cable
Cable Length: 50 cm
Connector on First End: 1 x RJ-45 Male Network
Connector on Second End: 1 x RJ-45 Male Network
Contact Plating: Gold
Features:

• Snagless
• Minimized Near-End Crosstalk (NEXT)
• Molded
• Damage Resistant
• Stranded
• Booted

Device Supported: Network Device
American Wire Gauge: 24 AWG
Data Transfer Rate: 1 Gbit/s
Physical Characteristics
Colour: White
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: Lifetime
