Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: RK12WALLOA
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

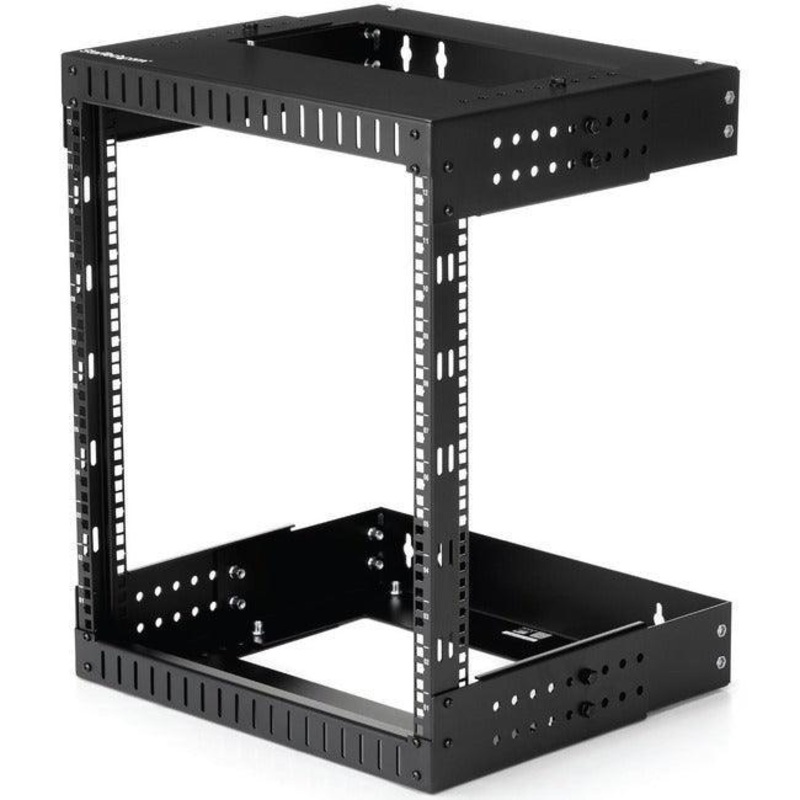

Product Name: 12U Wall Mount Server Rack- Equipment Rack – 12 – 20 in. Depth
Marketing Information:

This open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).

Easy, hassle-free installation

With adjustable depth to as low as 12 in. (30.4 cm) this network rack is perfect for smaller spaces. It’s easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.

Accommodate larger devices

The open-frame rack adjusts from 12 to 20 in. (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.

Free up space

When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.

Keep your equipment cool and accessible

The rack’s open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.

The RK12WALLOA is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Product Type: Rack Frame
Technical Information
Application/Usage:

• Server
• LAN Switch
• Patch Panel

Physical Characteristics
Form Factor: Wall Mountable
Colour: Black
Material: SPCC
Maximum Weight Capacity: 90 kg
Static/Stationary Weight Capacity: 90 kg
Height: 640.1 mm
Width: 502.9 mm
Depth: 304.8 mm
Length: 510.5 mm
Rack Height: 12U
Rack Width: 449.58 mm
Rack Depth: 505.46 mm
Weight (Approximate): 14.60 kg
Miscellaneous
Assembly Required: Yes
