Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEXSAT32
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

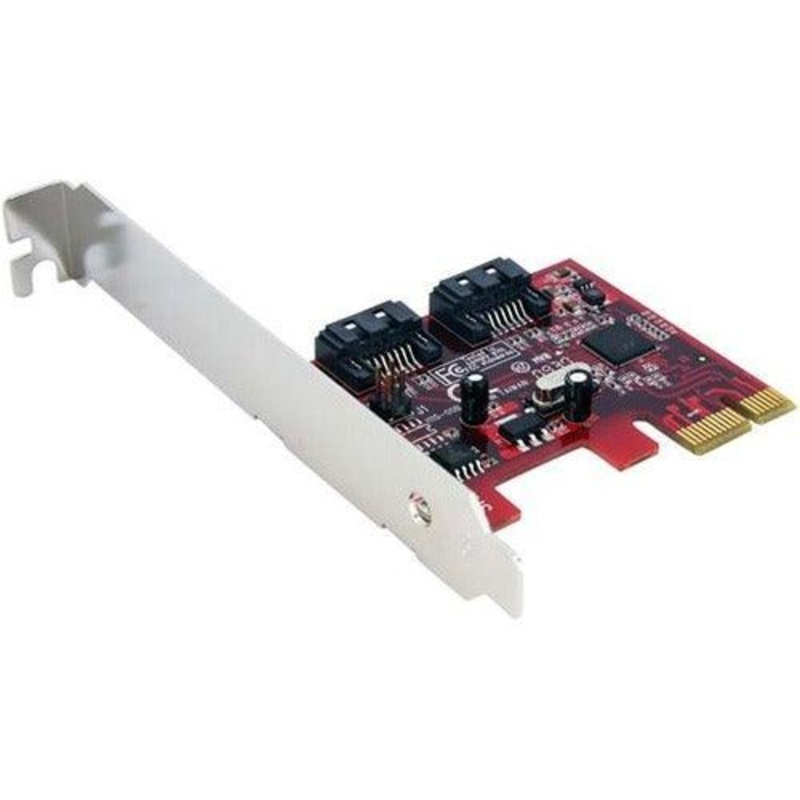

Product Name: 2 Port SATA 6 Gbps PCI Express SATA Controller Card
Marketing Information:

The PEXSAT32 2-Port PCI Express SATA 6 Gbps (SATA 3.0) Controller Card offers simple connectivity between a host computer and SATA 3.0 devices – a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving.

With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.

The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection.

A dual profile solution, the SATA 3.0 controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases.

More from the Manufacturer

Product Type: SATA Controller
Technical Information
Host Interface: PCI Express
Controller Type: Serial ATA/600
Interfaces/Ports
Total Number of SATA Ports: 2
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Dual-profile
Miscellaneous
Platform Supported:

• PC
• Mac
• Linux

Environmentally Friendly: Yes
TAA Compliant: Yes
