Specifications
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-X530L-52GPX-N1
Manufacturer Website Address: http://www.alliedtelesis.com
Brand Name: Allied Telesis
Product Series: x530L
Product Model: x530L-52GPX

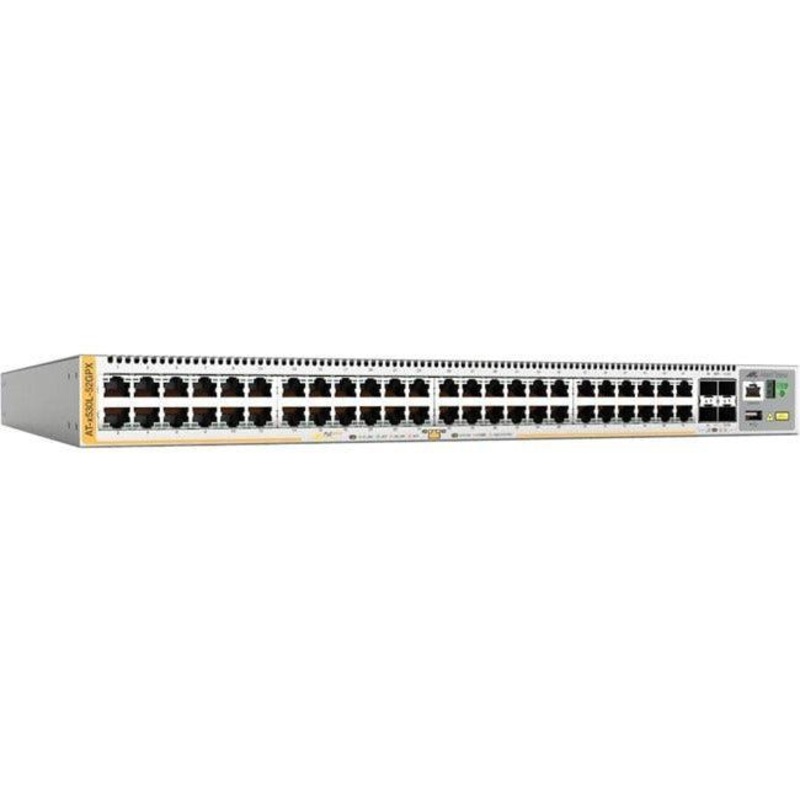

Product Name: Stackable Intelligent PoE+ Layer 3 Switch
Marketing Information:

The x530L-52GPX stackable Gigabit Layer 3 switch is high-performing and feature-rich, with 48 x 100M/1G PoE+ ports, and 4 x 10G uplinks.

KEY FEATURES

• AlliedWare Plus Enterprise-class operating system
• VCStack up to 4 units locally or over distance to support resilient networking
• Ethernet Protection Switched Ring (EPSRing) and G.8032 ERPS supports high-speed resilient ring-based networks
• Power over Ethernet Plus (PoE+) supplies up to 30 Watts to connect and power endpoints such as PTZ security cameras, POS terminals, and wireless access points.
• Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade
• Dual fixed power supplies provide a PoE+ power budget of 740 Watts

Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet PoE+
• 4 x 10 Gigabit Ethernet Expansion Slot
• 2 x Stack

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 10GBase-X
• 10/100/1000Base-T

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 441 mm
Depth: 421 mm
Weight (Approximate): 6.70 kg
Miscellaneous
Package Contents:

• Stackable Intelligent PoE+ Layer 3 Switch
• 19 Inch Rack-Mount Brackets

Environmentally Friendly: Yes
Environmental Certification:

• REACH
• RoHS
• WEEE
• EU RoHS
• China RoHS
