Specifications
Manufacturer: Atdec Pty Ltd
Manufacturer Part Number: SD-AT-DW-BK
Manufacturer Website Address: http://www.atdec.com
Brand Name: Atdec
Product Model: SD-AT-DW-BK

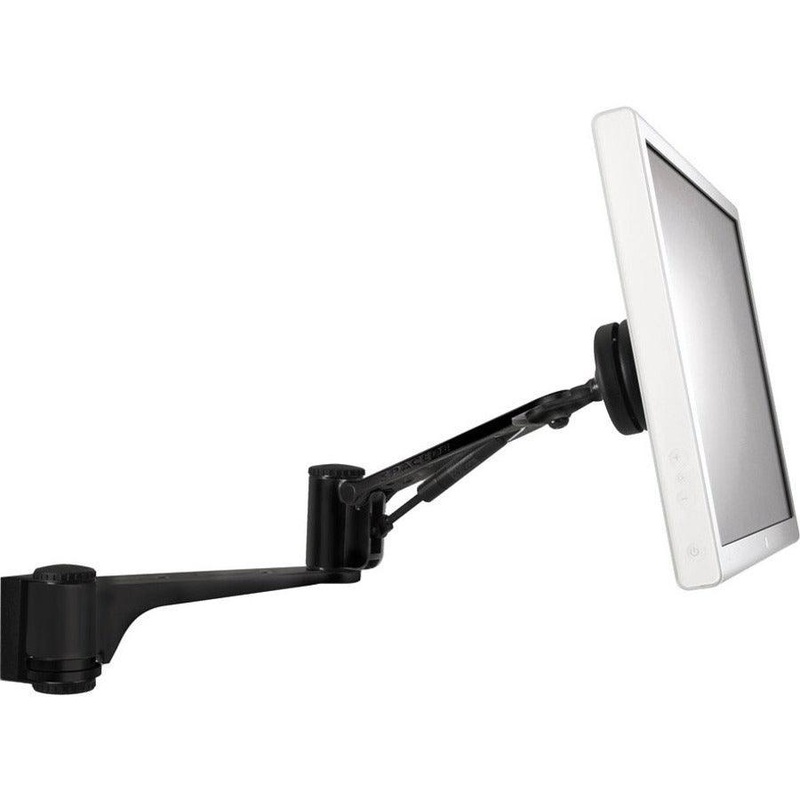

Product Name: SD-AT-DW-BK Acrobat Articulated Wall Arm
Marketing Information:

The SD-AT-DW-BK wall mount conserves valuable desk space by mounting monitors on a wall. With three separate pivot/adjustment points, the user has full control over their monitor position in terms of height, reach, tilt and screen rotation. Height adjustment is effortless thanks to the monitor weight counter-balancing gas-strut mechanism, which glides the monitor into position. Screen tilt and pan of up to 40 is also made simple with a ball joint mechanism. Flat screen monitors: maximum load from 6.6lb to 19.8lb

Product Type: Mounting Arm
Product Information
Device Supported: Flat Panel Display
Maximum Load Capacity: 9 kg
Maximum Screen Size Supported: 61 cm (24″)
Adjustable Height: Yes
Features:

• Swivel
• Articulating
• Tilt
• Spring Loaded Mechanism
• Pan

Physical Characteristics
Colour: Black
Material:

• Aluminium
• Steel
• Plastic

VESA Mount Standard:

• 100 x 100
• 75 x 75

Miscellaneous
Package Contents:

• Articulated Arm Assembly
• 16mm Cable Wrap
• Direct Wall Mount Bracket Assembly
• Direct Wall Mount Bracket
• Top Cap
• Threaded Rod
• Bottom Cap
• Bits Box
• 1 x Cable Wrap Applicator
• 4 x M6 Washer
• 4 x Nylon Anchor Plugs
• 4 x Extension Clip
• 1 x 5mm Allen Key
• 3 x Cable Clip
• 4 x M6x40mm Coach Screw
• 1 x Top Cap Tool
• 1 x 2.5mm Allen Key
• 4 x M4x10mm Screw
• 4 x M4x13mm Screw
• 4 x M4x16mm Screw

Compatibility:

LCD

Warranty
Limited Warranty: 5 Year
