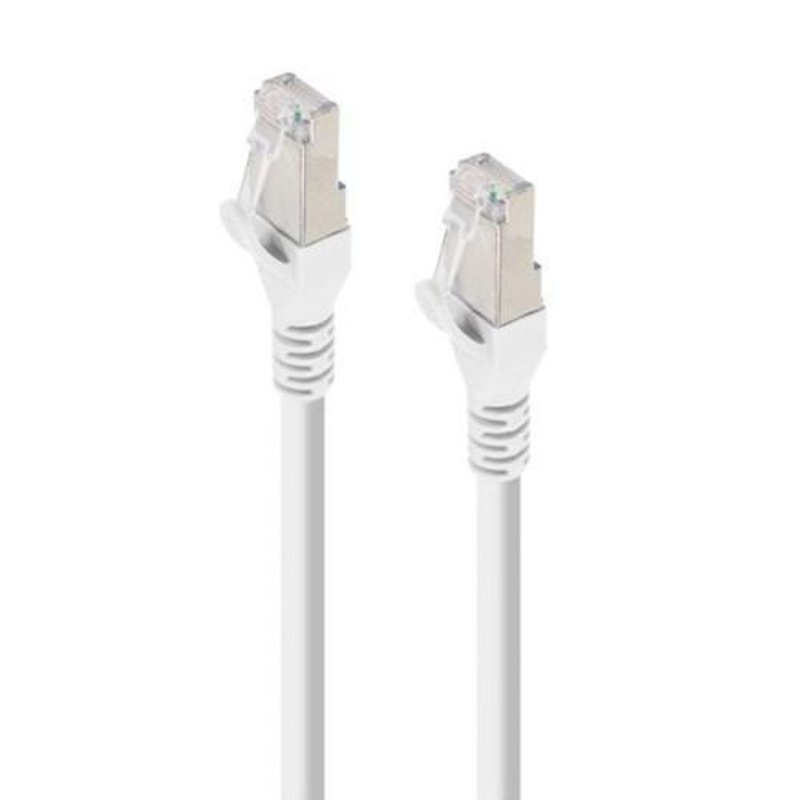

ALOGIC 1.5M WHITE 10GBE SHIELDED CAT6A LSZH NETWORK CABLE

ALOGIC CAT6a shielded snagless patch cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The ALOGIC CAT6a cabling system provides an End to End solution that provides a guaranteed 750 Mhz of usable bandwidth. The ALOGIC CAT6a solution consists of Pre-terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.

Features

Connect Your Ethernet Devices

Performance rated for 750 MHz bandwidth.

Suitable for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower.

Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage).

Overall Copper Braided Shielded.

Comes with LSZH (Low Smoke Zero Halogen) Jacket.

Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8×8 (RJ45) plugs.

Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.

Warranty: Lifetime

Specification

Part No. C6A-1.5-White-SH

Compliance A-Tick, ETL, UL, IEEE, RoHS Compliant

Warranty Lifetime

Input 8P8C (RJ45)

Wiring Scheme T568A

Standard Category 6a TIA/EIA-568C-2.1

Connector 50 micron gold-plated RJ45

Temperature Rating 75C

Voltage Rating 30V

Jacket LSZH (Low Smoke Zero Halogen)

Conductor Type 26AWG (7/0.16), Stranded Bare Copper

Packaging Commecial
