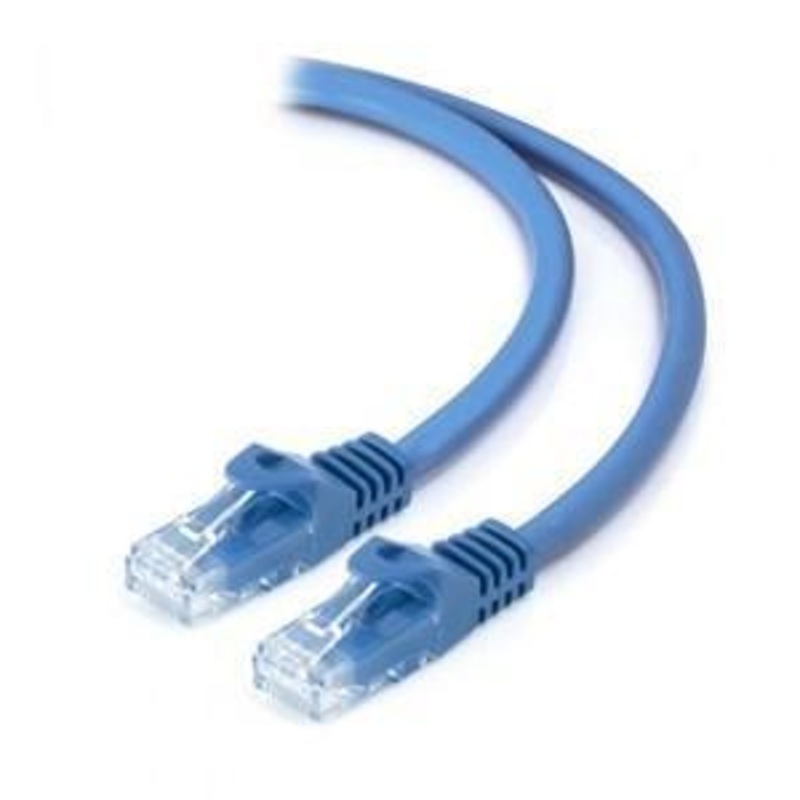

ALOGIC 5M CAT5E NETWORK CABLE BLUE

Connect Your Ethernet Devices

ALOGIC CAT5e snagless patch cables are ideal for transferring large volumes of voice, data, video and communications signals. ALOGIC CAT5e cables can help to improve the networks speeds by reducing impedance loss and network return loss. Each of the individual pairs of cables are bonded together to help maintain the twist-spacing throughout the line right up to the termination point. This design minimizes Near-End Crosstalk (NEXT) levels between them which leads to improved performance, low insertion loss and higher data rates. 24 AWG Copper cables and Gold plated connectors ensure crystal clear transmission and the custom designed snagless boot protects the cable from any damages during installation.

All ALOGIC CAT5e cables are A-Tick compliant with ACMA requirements.

Supports 10Base-T, 100Base-T, and 1000Base-T Network.

All ALOGIC CAT5e cables are A-Tick compliant with ACMA requirements.Supports 10Base-T, 100Base-T, and 1000Base-T Network.Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.

Available in 10 colours to easily colour-code your network installation.

Meets and exceeds all CAT5e TIA/EIA-568-C.2 standards 50-micron gold-plated connectors to ensure clear transmissions.

Snagless moulded connectors to protect the RJ45 retaining clips from damage during installation.

Warranty: Lifetime

Specification

Part No. C5-05-Blue

Compliance: RoHS Compliant

Warranty: Lifetime

Input: 8P8C (RJ45)

Wiring Scheme: T568A

Standard: Category 5e TIA/EIA-568-C.2

Connector: 50 micron gold-plated RJ45

Temperature Rating: 60C

Voltage Rating: 30V

Jacket: PVC

Conductor Type: 24AWG (7/0.20), Stranded Bare Copper

Packaging: Commecial

Barcode (EAN): 9319389878324
