Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JW325A
Manufacturer Website Address: http://www.hpe.com
Brand Name: Aruba
Product Line: Instant
Product Series: 320
Product Model: IAP-325

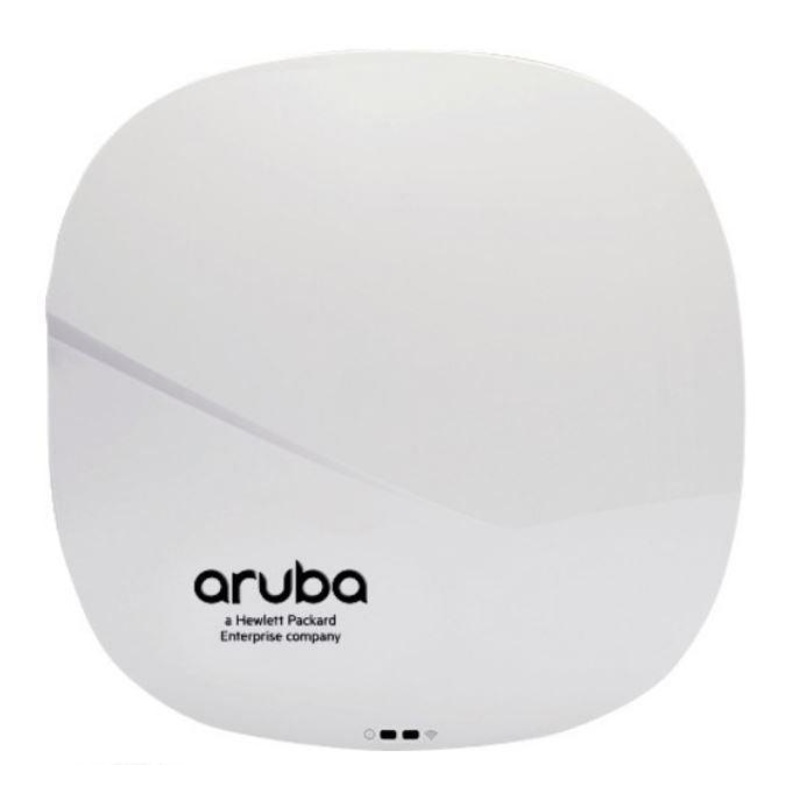

Product Name: Instant IAP-325 Wireless Access Point
Marketing Information:

Multifunctional 320 series wireless APs provide the best 802.11ac Wi-Fi connectivity and user experience. Featuring Aruba enhanced ClientMatch and Aruba Beacon technologies, the 320 series enables the highest capacity, performance, and efficiency in extremely high-density environments.

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (aggregated date rate of 2.5 Gbps), 320 series APs deliver best-in-class next-generation .11ac Wi-Fi infrastructure for the highest density environments.

The high performance and high density 802.11ac 320 series supports multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). It provides simultaneous multicast data transmission to multiple devices, maximizing data throughput and improving network efficiency.

The 320 series includes the patent-pending enhanced ClientMatch technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point. By grouping MU-MIMO capable mobile devices together, the network starts taking advantage of the simultaneous transmission to these devices, increasing its overall capacity. These dynamic roaming policies that are based on device types, help customers achieve the best WLAN performance in a mixed device environment during the technology transition period.

The 320 series has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.

Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:

• 5 GHz
• 2.40 GHz

Total Number of Antennas: 8
Number of Internal Antennas: 8
Wireless Transmission Speed: 2.50 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: No
PoE PD Port: Yes
VGA: No
HDMI: No
USB: Yes
Powerline: No
Management Port: Yes
Physical Characteristics
Form Factor:

• Ceiling Mountable
• Wall Mountable

Height: 57 mm
Width: 203 mm
Depth: 203 mm
Weight (Approximate): 950 g
Miscellaneous
Environmentally Friendly: Yes
