Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: DS9300
Product Model: DS9308

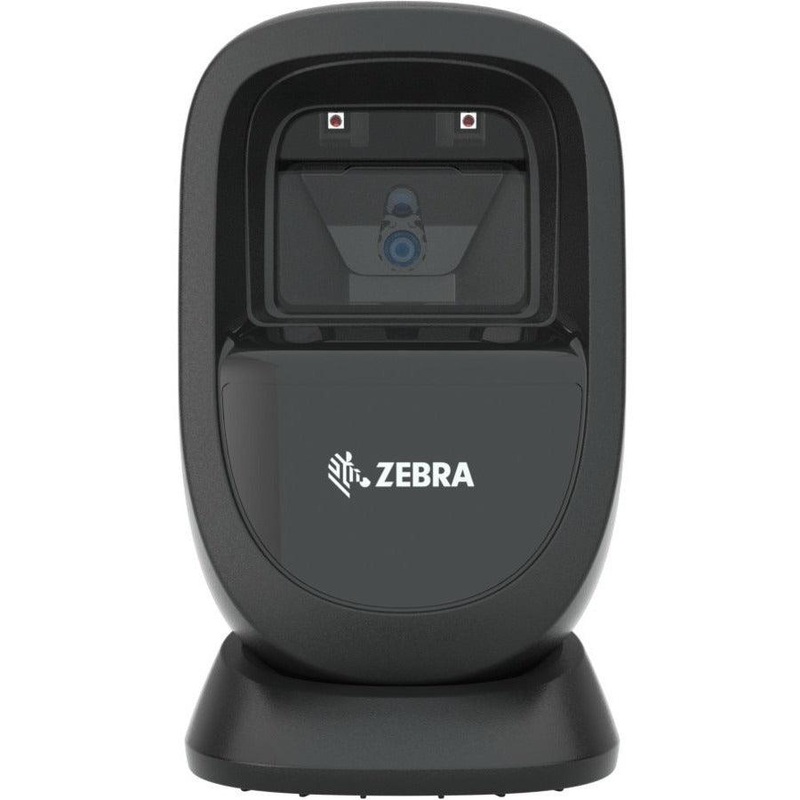

Product Name: DS9300 Series 1D/2D Presentation Barcode Scanner
Marketing Information: The little presentation scanner with big functionality

From convenience and drug stores to quick serve restaurants and other retail environments – counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series – the little presentation scanner with big functionality.

Innovation-driven design and performance

A fit-everywhere modern design with a near-zero footprint

The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300 Series, no matter how space-constrained your counters may be. And the 45 angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.

Scan it all – with virtually no exceptions

Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.

Rapid-fire can’t-miss scanning

When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.

Intelligent adaptive illumination

The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.

Instantly capture and process driver’s license data

Use the information on a driver’s license to instantly verify age, populate loyalty and credit card applications and monitor returns to prevent fraud.

Eliminate paper with document capture

With Intelligent Document Capture, the DS9300 Series can turn prescriptions, passports, checks and other A6 or smaller documents into clear and easy-to-read electronic images – the smart software automatically corrects lighting issues and more to ensure optimum document clarity. There’s no need to locate and scan documents on a separate scanner, enabling faster checkout and a better customer experience at the POS.
Product Type: Desktop Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Barcode Dimension:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Han Xin
• Postal Codes
• securPharm
• DotCode
• Dotted DataMatrix

OCR:

• OCR-A
• OCR-B
• MICR
• US currency

Image Sensor Type: Imager
Interfaces/Ports
Host Interface:

• Serial
• Keyboard Wedge
• USB
• IBM 46XX

Physical Characteristics
Colour: Midnight Black
Height: 145 mm
Width: 86 mm
Depth: 83 mm
Weight (Approximate): 318 g
