Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: S322M225R
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

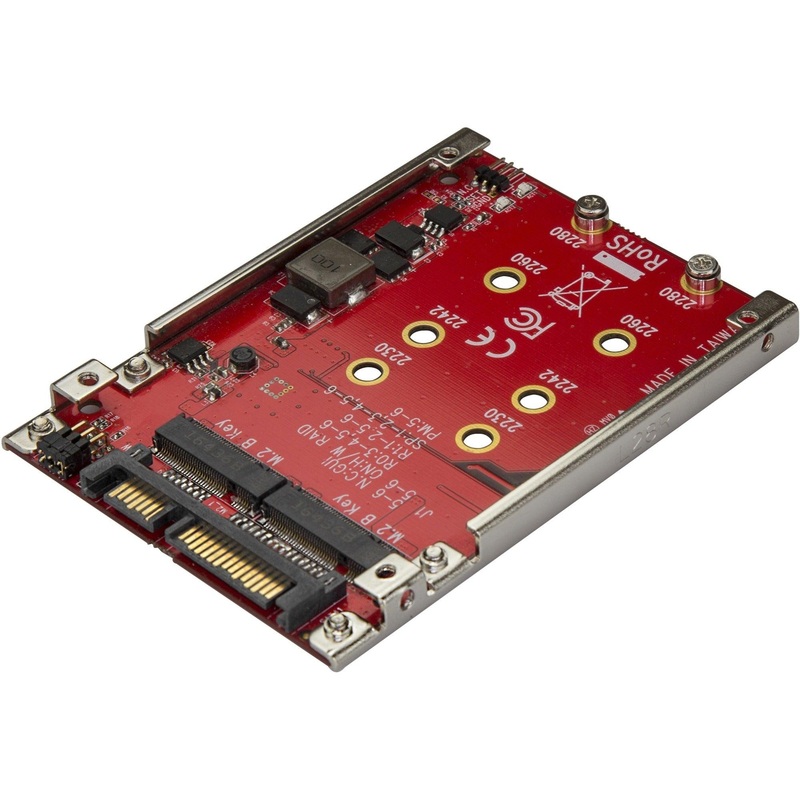

Product Name: Dual-Slot M.2 Drive to SATA Adapter for 2.5″ Drive Bay – RAID
Marketing Information:

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5″ drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maximize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity: 1
Product Type: DAS Storage System
Storage
Number of Solid State Drive Supported: 2
I/O Expansions
Number of Total Expansion Bays: 2
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, Concatenation
Interfaces/Ports
Host Interface: SATA/600
Physical Characteristics
Height: 7.6 mm
Width: 71.1 mm
Depth: 99.1 mm
Form Factor: Internal
Weight (Approximate): 41 g
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
