Specifications
Manufacturer: Fortinet, Inc
Manufacturer Part Number: FS-424D-POE
Manufacturer Website Address: http://www.fortinet.com
Brand Name: Fortinet
Product Line: FortiSwitch
Product Model: 424D-POE

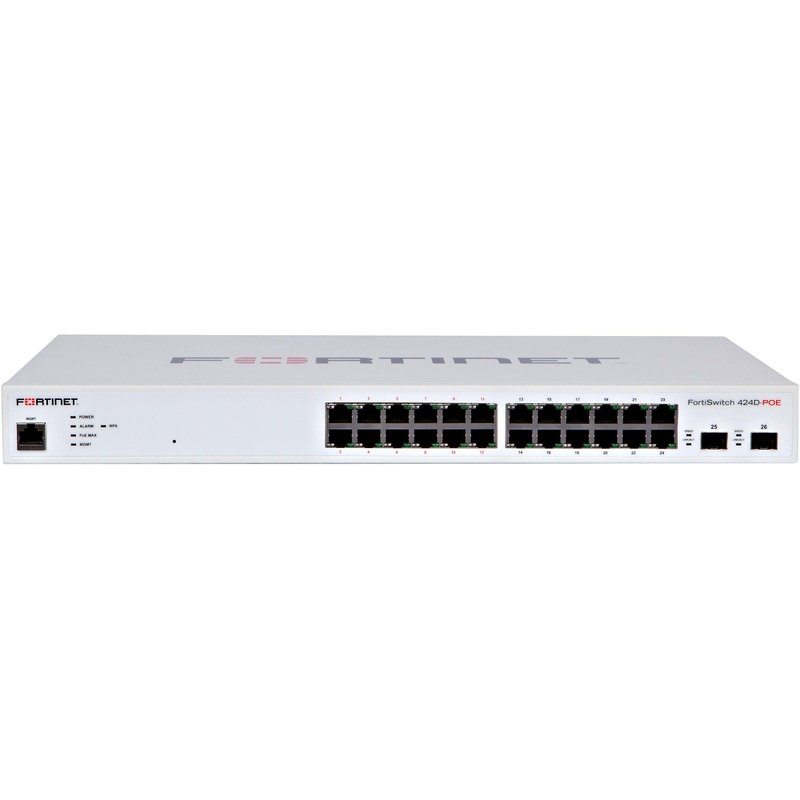

Product Name: FortiSwitch 424D-POE Ethernet Switch
Marketing Information: FortiSwitch Secure Access switches deliver outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

When a device connects to a Secure Access Switch Ethernet port, it is first identified, and then the user is authenticated. Once authenticated, access to the network is granted based non pre-defined security policy from the FortiGate, ensuring secure network access across the enterprise, without impacting the user experience.

Secure Managed Switches for Wire Closet Installation

The FortiSwitch D-Series switches are ideal for the next generation applications, where increased productivity can be achieved through faster network access speeds via dedicated Gigabit Ethernet ports. With a compact 1RU form factor, these switches are ideally suited for high density enterprise or classroom wire closet installations, delivering a truly secure network access platform for wired Ethernet devices.

Simple Network Deployment and Compliance

The Power over Ethernet (PoE) capability enables simple installation of wireless Access Points and IP phones in the network, with power and data being delivered over the same network cable. There is no need to contract electricians to install power for your PoE capable devices anymore, reducing your overall network TCO.

By leveraging the FortiSwitch VLAN segmentation feature of the switches, enterprise networks can support the convergence of voice, data and wireless traffic onto a single network platform. FortiSwitch network segmentation can even be managed from the FortiGate interface, simplifying the process of meeting compliance requirements for data separation.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet Network
• 2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 10GBase-X
• 1000Base-T

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44.5 mm
Width: 439.4 mm
Depth: 257 mm
Weight (Approximate): 3.82 kg
Miscellaneous
Environmentally Friendly: Yes
