Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IES101G2SFPW
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

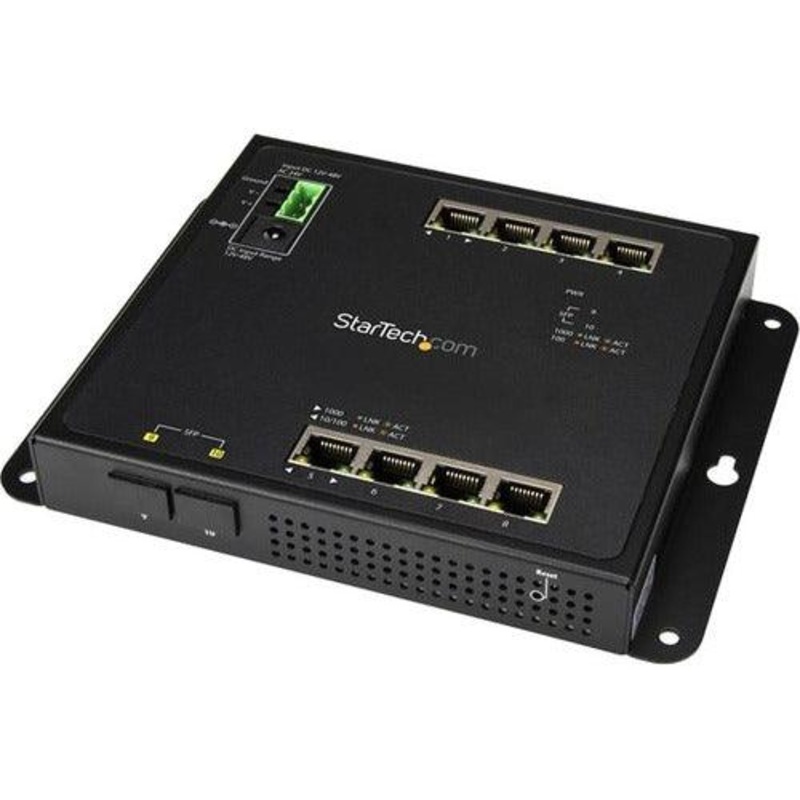

Product Name: 8-Port Gigabit Ethernet Switch with 2 Open SFP Slots
Marketing Information: Add eight copper Gigabit Ethernet (GbE) connections and two open SFP slots to your network with this 8-Port Gigabit Ethernet Switch. The rugged switch makes it easy to deploy or scale your network.Expand Your Network

This versatile GbE switch adapts to your network needs by adding two open SFP slots and eight RJ45 Ethernet ports, providing both fiber and copper connections in a single network switch. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection, and share two devices in the open SFP slots.

Intelligent Layer 2 Management

This Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network, and customizes settings to achieve optimal network performance.

Reliable Network Performance 10/100/1000 Mbps transfer speeds Jumbo frames Redundant 12-58V DC terminal block Full/half-duplex auto-negotiation Auto MDI/MDIX operation IPv4 and IPv6 dual stack management Link aggregation VLAN tagging Spanning tree protocolCompact, Mountable and Rugged Design

At only 5.5 x 7 in. and 1.375 lb., the industrial managed Ethernet switch is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference, while providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40C to 75C makes it ideal for harsh environments.

StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations. This wall-mount Ethernet switch is backed by a 2-year warranty and free lifetime North American based Technical Support.

Packaged Quantity: 1
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Modular: Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-SX

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: AC Adapter
Physical Characteristics
Form Factor:

• Wall Mountable
• Rail-mountable
• Magnetic Mount

Height: 30.5 mm
Width: 139.7 mm
Length: 177.8 mm
Weight (Approximate): 626.5 g
Miscellaneous
TAA Compliant: Yes
