Specifications
Manufacturer: StarTech.com
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

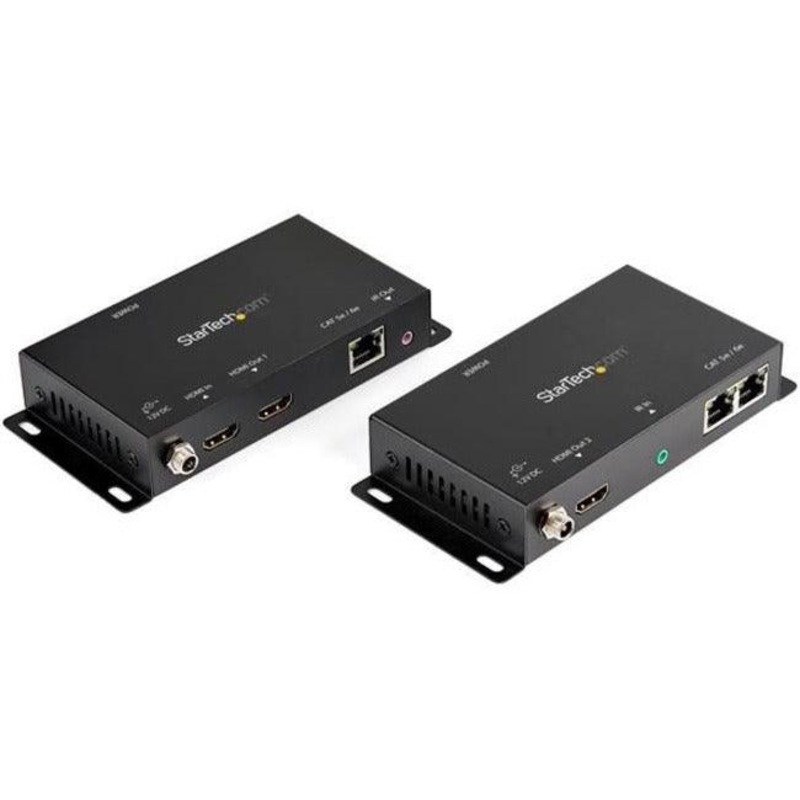

Product Name: Video Extender Transmitter/Receiver
Marketing Information:

The HDMI Over IP Extender kit lets you extend an HDMI signal over your network or network cabling.

Point-to-Point Configuration

For smaller-scale applications, the HDMI video extender over Cat6 kit can be used as a point-to-point video extender up to 492 feet (150 meters). The 1080p HDMI extender units can even cascade the same signal to multiple receivers.

Flexible Installation

The HDMI Balun kit includes optional mounting hardware for a tidy installation. Ideal for corporate applications, the extender supports 1080p video resolutions and stereo audio. The HDMI extender over LAN uses standard Cat5e or Cat6 Ethernet cables with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables. The local unit also features an HDMI output to avoid the need for an additional HDMI splitter.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales

The ST12MHDLNV is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 152.40 m
Video
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 3
Number of HDMI Inputs: 1
Number of HDMI Outputs: 2
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Physical Characteristics
Colour: Black
Transmitter Height: 26 mm
Transmitter Width: 70 mm
Transmitter Depth: 12 mm
Receiver Height: 26 mm
Receiver Width: 70 mm
Receiver Depth: 12 mm
Form Factor: Desktop
Transmitter Weight (Approximate): 474 g
Receiver Weight (Approximate): 474 g
