Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: J9983A
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Series: 1820
Product Model: 1820-24G-PoE+

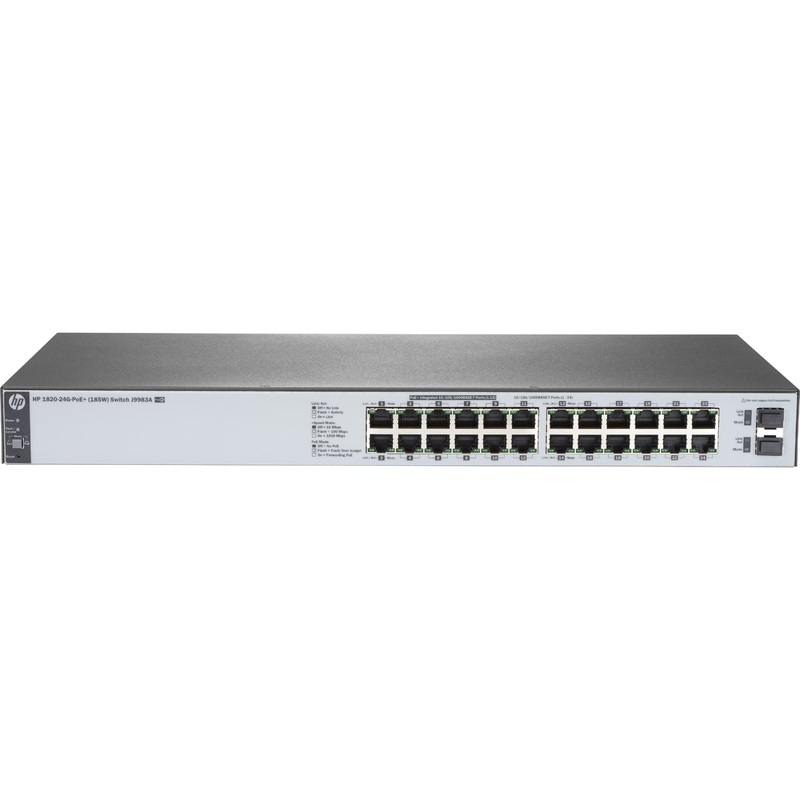

Product Name: 1820-24G-PoE+ (185W) Switch
Marketing Information:

HP 1820 Switch Series devices are basic smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.

The series consists of 6 switches including 8-, 24-and 48 port Gigabit Ethernet switches and 8-, 24-, and 48 port Gigabit PoE+ models each providing non-blocking Gigabit per port performance. Some models include SFP ports for fiber connectivity and some are fanless, making them ideal for office deployments. All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: No
Modular: No
Port/Expansion Slot Details:

• 12 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot
• 12 x Gigabit Ethernet PoE+

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Input Voltage:

• 120 V AC
• 230 V AC

Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Wall Mountable
• Under Table
• Desktop

Height: 43.9 mm
Width: 442.5 mm
Depth: 246.1 mm
Weight (Approximate): 3.31 kg
