Specifications
Manufacturer: MSI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI

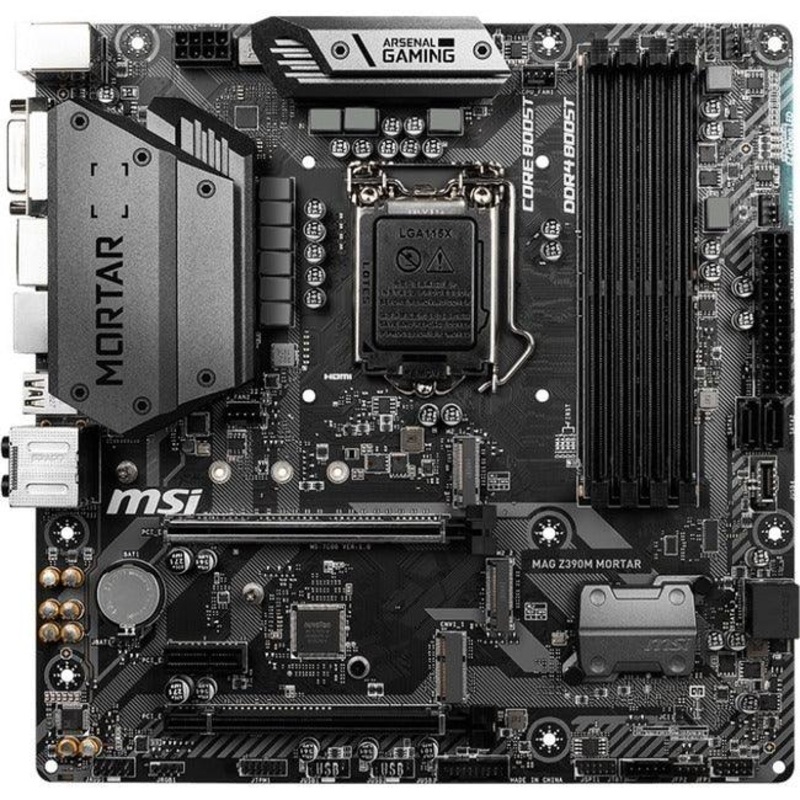

Product Model: MAG Z390M MORTAR
Product Name: MAG Z390M MORTAR Desktop Motherboard
Marketing Information:

Military style with Extended heatsink design for better thermal solution, Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector

• Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
• Supports DDR4 Memory, up to 4400(OC) MHz
• Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
• Lightning Fast Game experience: 2x Turbo M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2
• Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.

DIY FRIENDLY

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

Cooling

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.

HW

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.

Compatibility

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

BIOS and Software

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.

ENHANCED PERFORMANCE

MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

CPU

High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.

DDR

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

Storage

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:

• Core i3
• Core i5
• Core i7
• Core i9
• Celeron
• Pentium Gold

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 64 GB
Memory Speed Supported:

• 4400 MHz (O.C.)
• 4300 MHz (O.C.)
• 4266 MHz (O.C.)
• 4200 MHz (O.C.)
• 4133 MHz (O.C.)
• 4000 MHz (O.C.)
• 3866 MHz (O.C.)
• 3733 MHz (O.C.)
• 3600 MHz (O.C.)
• 3466 MHz (O.C.)
• 3400 MHz (O.C.)
• 3333 MHz (O.C.)
• 3300 MHz (O.C.)
• 3200 MHz (O.C.)
• 3000 MHz (O.C.)
• 2800 MHz (O.C.)
• 2666 MHz
• 2400 MHz
• 2133 MHz

Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.1 Ports: 2
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.1 Ports: 3
Physical Characteristics
Form Factor: Micro ATX
Width: 243.8 mm
Depth: 243.8 mm
Miscellaneous
Country of Origin: China
