Specifications
Manufacturer: StarTech.com
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

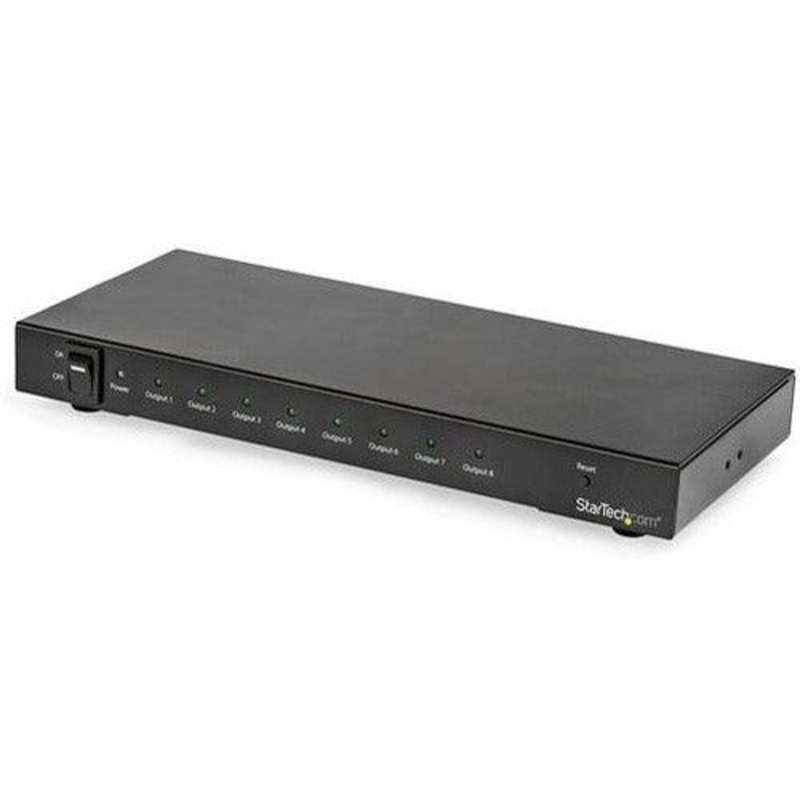

Product Name: 8-Port 4K 60Hz HDMI Splitter
Marketing Information: This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports true 4K at 60Hz

This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.

Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.

Widely compatible

The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.

Easy installation and setup

The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.

The ST128HD20 is backed by a 2-year StarTech.com warranty.
Packaged Quantity: 1
Product Type: Signal Splitter
Video
Maximum Video Resolution: 3840 2160
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 1
Number of HDMI Outputs: 8
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
Height: 25.4 mm
Width: 109.2 mm
Length: 259.1 mm
Weight (Approximate): 762 g
Miscellaneous
TAA Compliant: Yes
