Specifications
Manufacturer: StarTech.com
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Docking Station
Marketing Information:

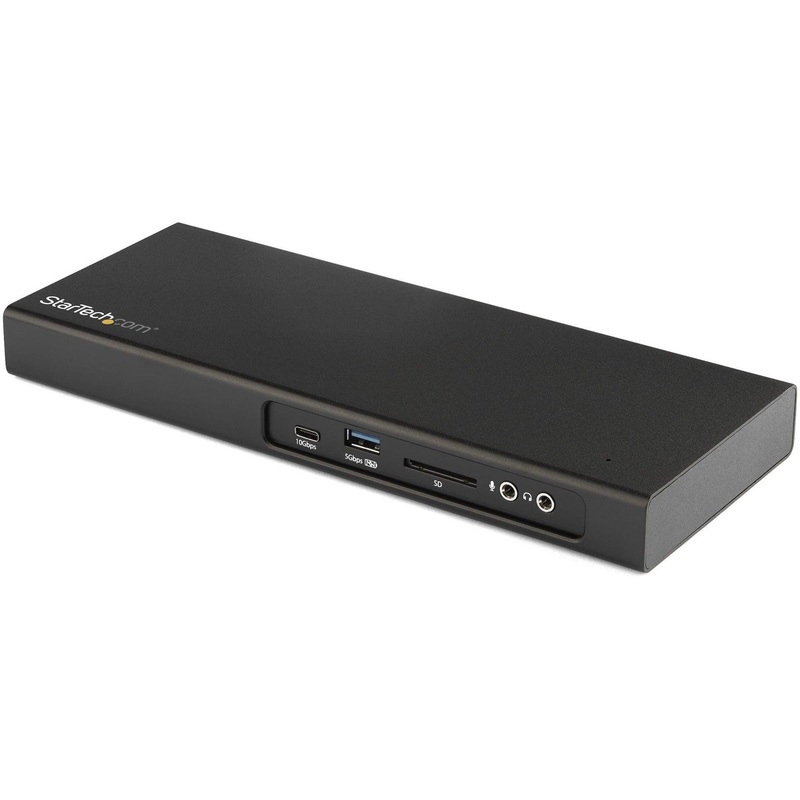

This compact Thunderbolt 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.
Create a Dual-4K 60Hz Workstation
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors:
- 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz)
- USB-C to DP cable or USB-C video adapter may be required
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Add Data Storage
The Thunderbolt 3 dock’s built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.
Fast SD Card Access
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock’s SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.
Connect Your Devices
Connect peripherals with three USB ports – one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.
The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
85W Power Delivery
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
The TAA compliant TB3DK2DPM2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook/Monitor
Interfaces/Ports
Host Interface: USB Type C
Audio Line In: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
USB Type-C: Yes
USB Type-C Detail: 2 x Thunderbolt 3 USB-C (24-pin) (40Gbps) Female, 1 x USB Type-C (24 pin) USB 3.1 (10Gbps) Female
Network (RJ-45): Yes
Number of DisplayPort Outputs: 1
DisplayPort: Yes
Microphone: Yes
Thunderbolt: Yes
Power Description
Maximum Power Supply Wattage: 85 W
Physical Characteristics
Height: 25.4 mm
Width: 238.8 mm
Depth: 94 mm
Weight (Approximate): 779.6 g
Miscellaneous
Compatibility:
Apple MacBook Pro
Environmentally Friendly: Yes
TAA Compliant: Yes
