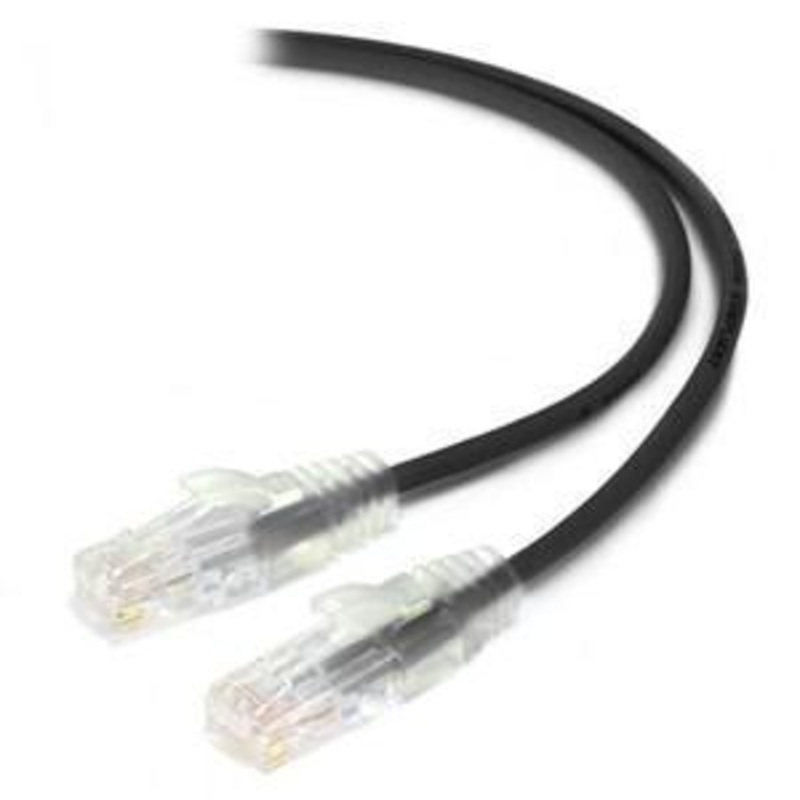

ALOGIC 0.5M CAT6 ULTRA SLIM NETWORK CABLE BLK

Connect Your Ethernet Devices

The Ultra Slim Cat6 UTP, 28AWG, Network Cable joins the Series Alpha Structured Cabling Solution from ALOGIC. The Ultra Slim Cat6 Cable are constructed of 28 AWG, unshielded, twisted pair, stranded copper with LSZH jacket and high performance RJ45 modular plugs.

Exceeds all ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Edition 2.1 electrical performance requirements.

Ultra Slim design saves valuable space.

Suitable for high density environment.

Flexible cable allows for high bend radius.

50u gold plated connected connectors and 100% copper construction.

Fully Moulded tangle Free Snag-less boot allow for a clean and time saving install and move.

Available in ten colours for colour coding your installation.

Warranty: Lifetime

Specification

Part No. C6S-0.50BLK

Compliance: ANSI/TIA-568-C.2 Category 6, ISO 11801 Class E Edition 2.1, IEC 60603-7, IEEE 802.3af/802.3at, RoHS

Warranty: Lifetime

Input: 8P8C (RJ45)

Wiring Scheme: T568A

Connector: 50u Gold Plated | Fully Moulded Snag-less Boot

Jacket: Outer Dia.: 3.8 +/- 0.15 mm | Insulation: LSZH

Conductor Type: 28AWG (100% Copper)

Barcode (EAN): 9350784011114
