Specifications
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: ES-8-150W
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: EdgeSwitch
Product Model: ES-8-150W

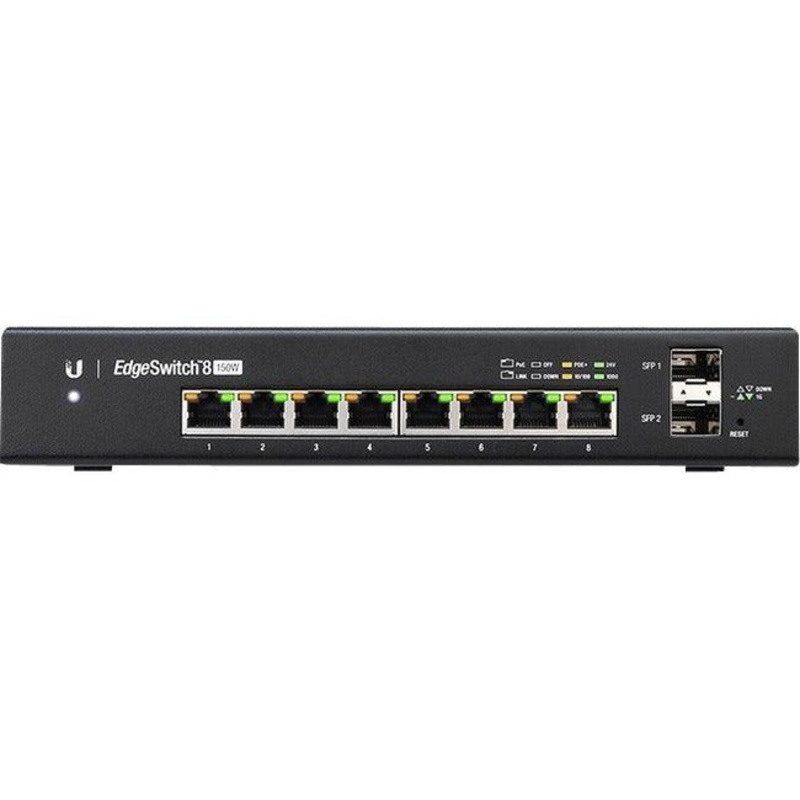

Product Name: Managed PoE+ Gigabit Switch with SFP
Marketing Information:

Gigabit Connectiviy

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support

Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fiber Backhaul

The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

Powerful Performance

The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-TX
• 1000Base-X

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor:

• Standalone
• Desktop
• Wall Mountable

Height: 43 mm
Width: 235 mm
Depth: 204 mm
Weight (Approximate): 1.72 kg
