Specifications
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: US-24
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: UniFi
Product Model: US-24

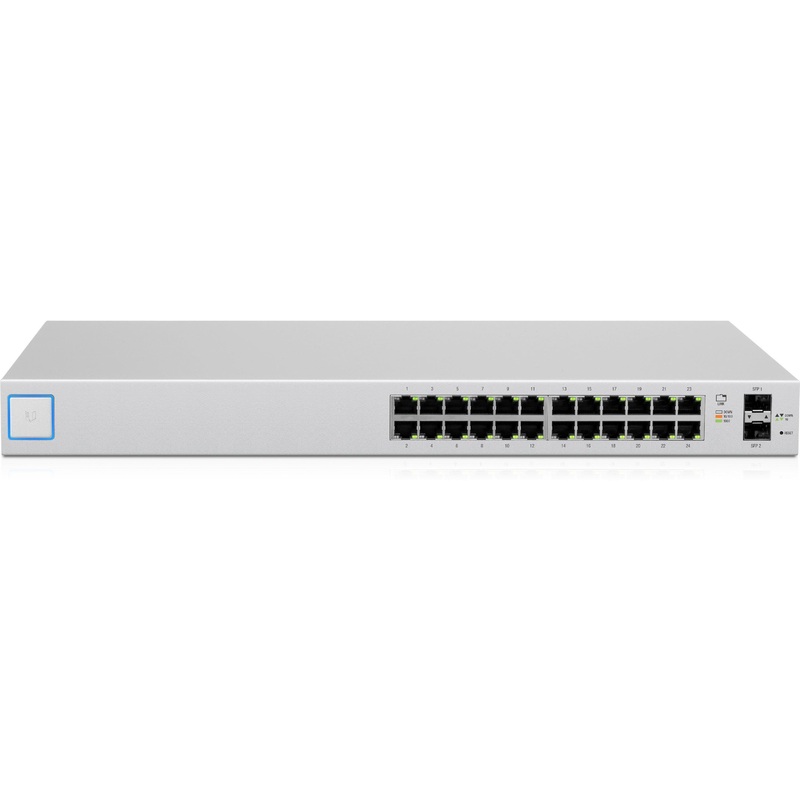

Product Name: Managed Gigabit Switch with SFP
Marketing Information:

Powerful Enterprise Switch Models

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Non-Blocking Throughput

For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.

Switching Capacity

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Versatile Mounting Options

The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

Seamless Integration

The UniFi Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations – all controlled from a single interface.

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Modular: Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-TX
• 1000Base-X

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
